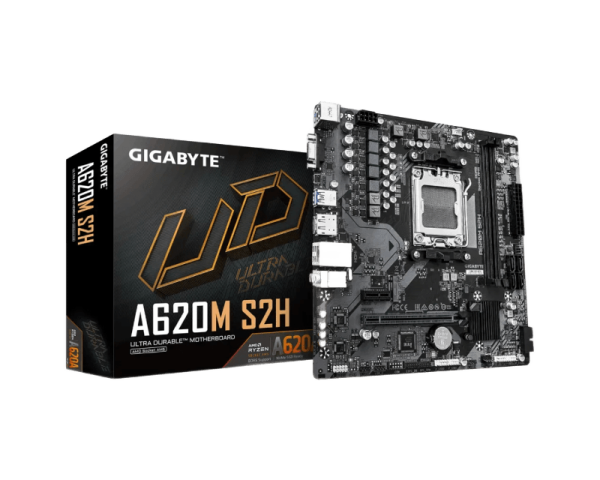

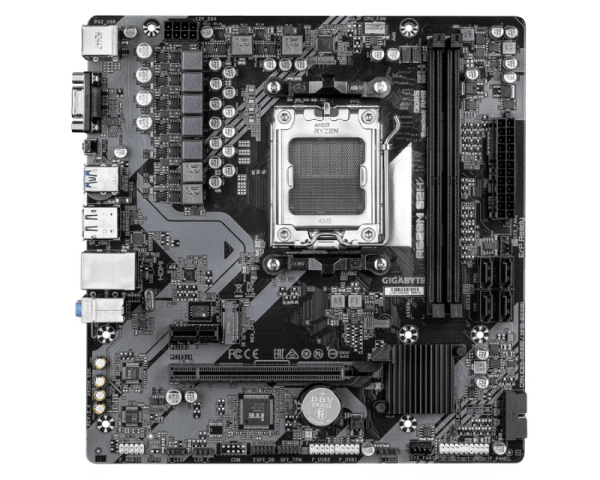

A620M S2H rev. 2.x

Варијанта:

− +

353 190 ден.

0 ден.

Не е достапен

Бренд:

Gigabyte
Шифра:

INS-38-10156-E
Достапност:

Достапно за нарачка (рок од 1 до 2 дена)
Број на физички јадра:

6 , 4
Chipset:

AMD A620A
RAM type:

DDR5
RAM DIMMs:

2
Капацитет:

128GB
USB Type-C ports:

1
Dimensions:

230mm x 225mm
Format:

Microatx
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Supported technologies:

Q-Flash Plus, Norton Internet Security (OEM version), UEFI Bios, Voltage detection, Temperature detection, Fan fail warning, Fan speed control, Fan speed detection, iTE I/O Controller Chip, Water cooling flow rate detection, GIGABYTE Control Center, Smart Fan 6, LAN bandwidth management software
DisplayPort ports:

1x DisplayPort
HDMI connectors:

1x HDMI
Model:

Realtek
Processor bearing (Socket):

AMD AM5
USB ports:

2x USB 5GBPS (3.2 GEN 1), 4x USB 2.0
Other traits:

Support for Unbuffered ECC memory, Support for Extreme Memory Profile (XMP), Support for non-ECC UDIMM memory, Dual Channel, Support for AMD EXTended Profiles for Overclocking (EXPO)
Audio:

1x Front Panel Audio, 1x Front Panel Header
Wired network (LAN):

1x Realtek 1Gb Ethernet
Other connections:

1 x Clear CMOS jumper, 2 x addressable LED strip headers, 4 x SATA 6Gb/s, 1 x M.2 Socket 3, 1 x RGB LED strip header, 1 x CPU fan header, 1 x Trusted Platform Module (TPM) header, 2 x system fan headers
PCI Express X1 Slot:

1x PCI Express 3.0
USB:

2 x Support for 1 USB 2.0 port, 1 x Support for 1 USB 5Gbps port
Supported memory:

6,000MT/s (O.C.), 7,200MT/s (O.C.), 6,800MT/s (O.C.), 6,600MT/s (O.C.), 6,400MT/s (O.C.), 6,200MT/s (O.C.), 5,200MT/s, 4,800MT/s, 7,600MT/s (O.C.), 5,600MT/s (O.C.), 4,400MT/s
PCI Express x16 slot:

1x PCI Express 4.0 (x8/x4 mode)
SATA ports:

4x SATA III 6.0Gbs
Raid:

Raid 0, Raid 1, Raid 10
Channel number:

2/4 / 5.1 / 7.1
PS / 2:

1 (keyboard or mouse)
Voltage connections:

1x 24-pin ATX Main Power Connector, 1 x 8-pin ATX 12V Power Connector
Supported M.2 formats:

1x 2580 (support for PCIe 4.0 x4/x2 mode)

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 15000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

Basic features - Processor socket (socket): AMD AM5 Chipset: AMD A620A Memory - Memory type: DDR5 Memory slots: 2 Supported memories: 4,400MT/s, 4,800MT/s, 5,200MT/s, 5,600MT/s (O.C.), 6,000MT/s (O.C.), 6,200MT/s (O.C.), 6,400MT/s (O.C.), 6,600MT/s (O.C.), 6,800MT/s (O.C.), 7,200MT/s (O.C.), 7,600MT/s (O.C.) Maximum total memory: 128GB Other features: Dual Channel, Support for AMD EXTended Profiles for Overclocking (EXPO), Support for Extreme Memory Profile (XMP), Support for non-ECC UDIMM memory, Support for Unbuffered ECC memory Slots - PCI Express x16 slot: 1x PCI Express 4.0 (x8/x4 mode) PCI Express x1 slot: 1x PCI Express 3.0 Storage interface - SATA ports (total): 4 SATA ports: 4x SATA III 6.0Gbs Number of M.2 slots: 1 Supported M.2 formats: 1x 2580 (support for PCIe 4.0 x4/x2 mode) RAID: RAID 0,RAID 1,RAID 10 Network - Wired network (LAN): 1x Realtek 1Gb Ethernet Model: Realtek Audio - Number of channels: 2/4/5.1/7.1 Model: Realtek Note: High Definition Rear panel connectors - Number of DisplayPort connectors: 1 DisplayPort connectors: 1x DisplayPort Number of HDMI connectors: 1 HDMI connectors: 1x HDMI PS/2: 1 (keyboard or mouse) Total USB ports: 6 USB-A ports: 2x USB 5Gbps (3.2 Gen 1), 4x USB 2.0 RJ-45 (LAN): 1 Audio: 3x 3.5mm Internal ports - Power ports: 1 x 8-pin ATX 12V power connector, 1x 24-pin ATX main power connector USB-A: 1 x support for 1 USB 5Gbps port, 2 x support for 1 USB 2.0 port Audio: 1x Front panel audio, 1x Front panel header Other connections: 1 x Clear CMOS jumper, 1 x CPU fan header, 1 x M.2 Socket 3, 1 x RGB LED strip header, 1 x Trusted Platform Module (TPM) header, 2 x addressable LED strip headers, 2 x system fan headers, 4 x SATA 6Gb/s Note: To utilize certain internal connectors, additional brackets or connectors on the case Other features - Supported technologies: Temperature detection, Fan fail warning, Fan speed control, Fan speed detection, GIGABYTE Control Center, iTE I/O Controller Chip, LAN bandwidth management software, Norton Internet Security (OEM version), Q-Flash, Q-Flash Plus, Smart Fan 6, UEFI Bios, Voltage detection, Water cooling flow rate detection Physical features - Format: microATX Dimensions: 230mm x 225mm Complaint period - Complaint period: 36 months
