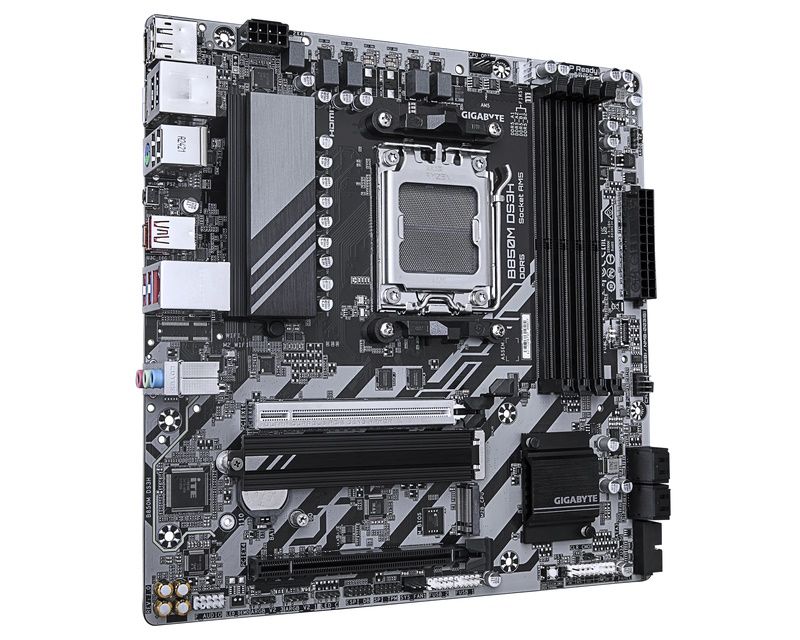

B850M DS3H REV. 1.0

Варијанта:

− +

9 390 ден.

0 ден.

Не е достапен

Бренд:

Gigabyte
Шифра:

INS-38-7397-E
Лагер:

Не е достапен

Да
Достапност:

Достапно за нарачка (рок од 1 до 2 дена)
Број на физички јадра:

8 , 4
Chipset:

AMD B850
RAM type:

DDR5
RAM DIMMs:

2
Капацитет:

256GB
USB Type-C ports:

1
Dimensions:

244mm x 244mm
Format:

Microatx
Note:

High Definition
Warranty:

36 months
Supported technologies:

Q-Flash Plus, Smart Backup, UEFI BIOS
DisplayPort ports:

2x DisplayPort 1.4
HDMI connectors:

1x HDMI 2.1
Model:

Realtek
Processor bearing (Socket):

AMD AM5
USB ports:

1x USB 10GBPS (3.2 GEN 2), 2x USB 5GBPS (3.2 GEN 1), 4x USB 2.0
Other traits:

Support for Unbuffered ECC memory, Extreme Memory Profile (XMP), Dual Channel (Dual-Channel) Memory mode, Non-ECC Support Udimm Memory, AMD Extended Profiles for Overclocking (Expo)
Audio:

1x Front Panel Audio, 1x Front Panel Header
Wired network standards:

2.5GBASE-T (Gigabit)
Other connections:

1 x Clear CMOS Jumper, 1 x Trusted Platform Module (TPM), 4 x RGB LED Header, 1 x Fan Header, 2 x M.2 Socket 3, 1x System Fan Header, 1x CPU Fan / Water Cooling Pump Header, 2x Addressable RGB Gen2 LED Strip Headers, 1 x 12V-2x6 Auxiliary Power Connector, 2 x USB 2.0 Headers
USB:

2 x Support for 1 USB 2.0 port, 1 x Support for 1 USB 5Gbps port
USB-C ports:

1x USB 10GBPS (3.2 GEN 2)
PCI Express x16 slot:

1x PCI Express 3.0 (X16 Mode), 1x PCI Express 5.0 (X16 Mode)
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 10, Raid 5
Channel number:

2/4 / 5.1 / 7.1
PS / 2:

1 (keyboard or mouse)
Voltage connections:

1x 24-pin ATX Main Power Connector, 1 x 8-pin ATX 12V Power Connector
USB-C:

1 x Support for 1 USB 10Gbps port
Supported M.2 formats:

1x 2280/2580/22110 / 25110 (PCIe 4.0 x4 / X2 mod), 1x 2280/2580/22110 / 25110 (PCIE 5.0 x4 / X2 mod)

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

Basic characteristics - Processor bolder (Socket): AMD B850 Memory: DDR5 Memory slots: 4 Supported memory: 4.400mt / s, 4.800mt / s, 5,200mt / s, 5.600mt / s (o.c.), 6,000mt / s (o.c.), 6.200mt / s (O.c.), 6.400mt / s (o.c.), 6.600mt / s (o.c.), 6.800mt / s (o.c.), 7.000mt / s (o.c.), 7.600mt / s (o.c.), 7.800mt / s (O.c.), 8.000mt / s (o.c.), 8,200mt / s (O.C.) Maximum total memory: Dual channel (dual-channel) Memory mode, AMD Extended Profiles for Overclocking (EXPO), Extreme Memory Profile (XMP), Non-ECC Support Udimm Memory, Support for Unbuffered ECC memory - PCI Express X16 Slot: 1x Express 5.0 (X16 Mode) Storage Interface - SATA Accessories: SATA III 6GBPS Number M.2 Formats: 1x 2280/2580/22110 / 25110 (Support For PCIE 4.0 x4 / X2 mod), 1x 2280/2580/22110 / 25110 RAID: RAID 10, RAID 1, RAID 10, RAID 5 Network - Wired Model: Realtek Audio - Channel number: 2/4 / 5.1 / 7.1 Model: Realtek Note: High Definition connections in the back panel - DisplayPort ports: 2 DISPLAYPORT 1.4 HDMI ports: 1 HDMI (keyboard or mouse) Total USB ports: 1 USB ports: 1x USB 10GBPS (3.2 GEN 2), 2x USB 5GBPS (3.2 GEN 1), 4x USB 2.0 USB-C Connections: 1x USB 10GBPS (3.5mm): 1 Audio: 3x Q-Flash Plus Internal connectors - Voltage connections: 1 x 8-PIN ATX 12V Power Connector, 1x 24-pin ATX Main Power CONNECTOR USB: 1 x Support for 1 USB 5Gbps port, 2 USB 2.0 port audio: 1x Front Panel Header Other connections: 1 x Clear CMOS Jumper, 1 x CPU Fan Header, 1 x Reset Button, 1 x Reset Jumper, 1 X RGB LED Strip Header, 1 x System Fan / Water Cooling Pump Headers (TPM), 1x CPU Fan / Water Cooling Pump Header, 2 x M.2 Socket 3.3x Addressable RGB Gen2 LED Strip Headers, 4 X SATA 6GB / S Other Characteristics - Supported technologies: Q-Flash, Q-Flash Plus, Smart Backup, UEFI BIOS Physical Features - Format: MicroTX Dimensions: 244mm x 244mm Commercial period - Commercial period: 36 months
