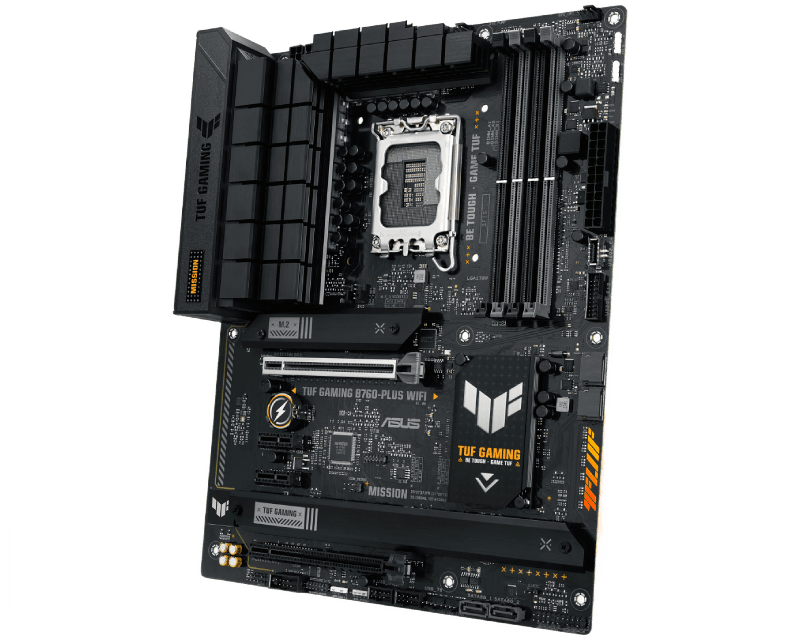

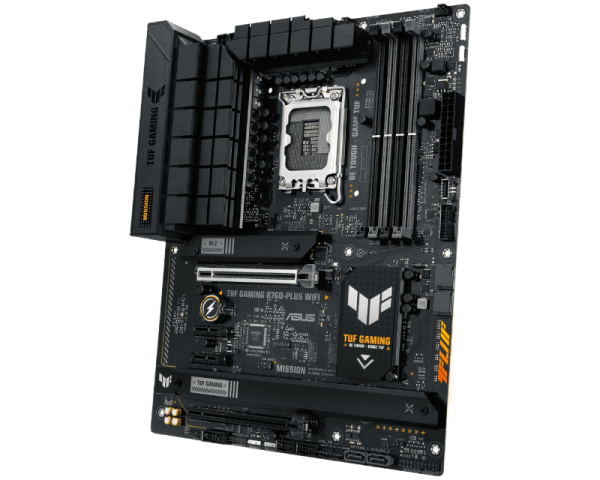

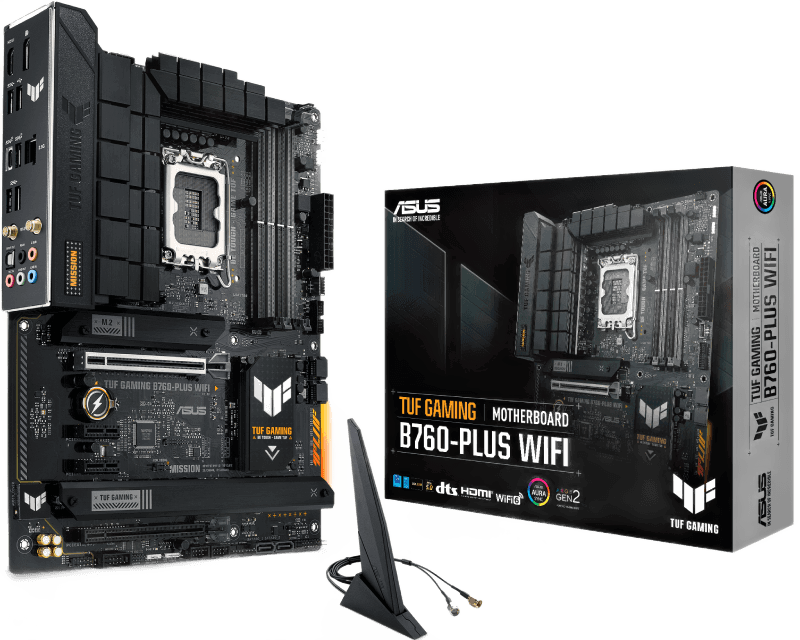

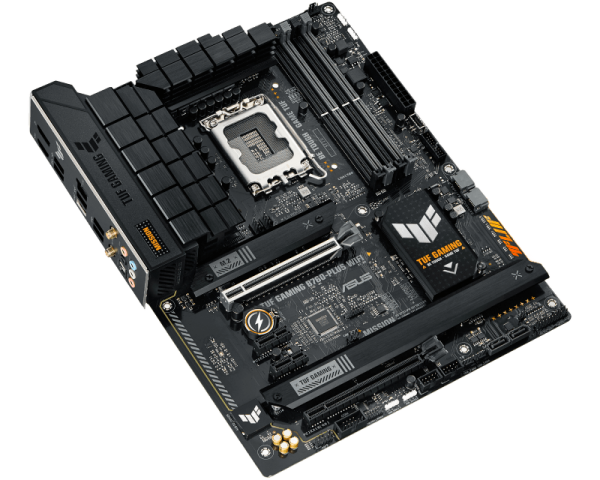

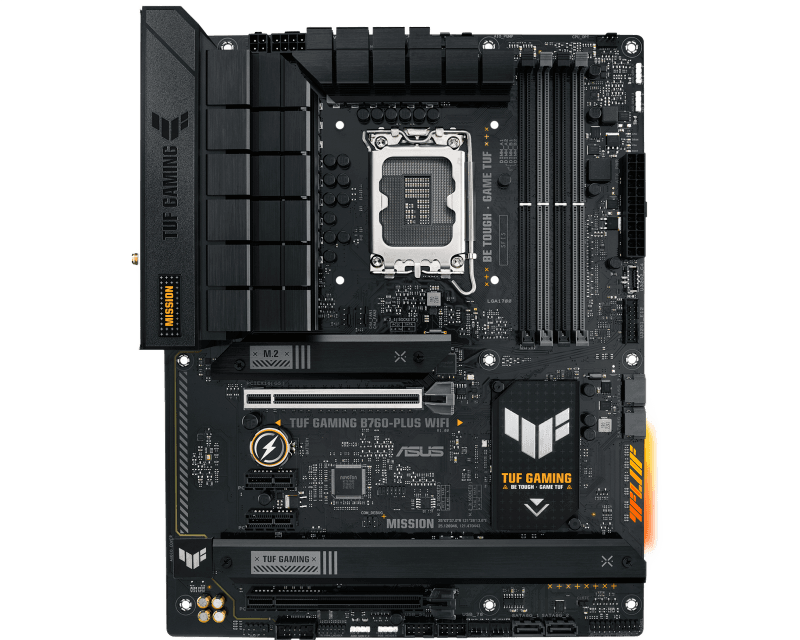

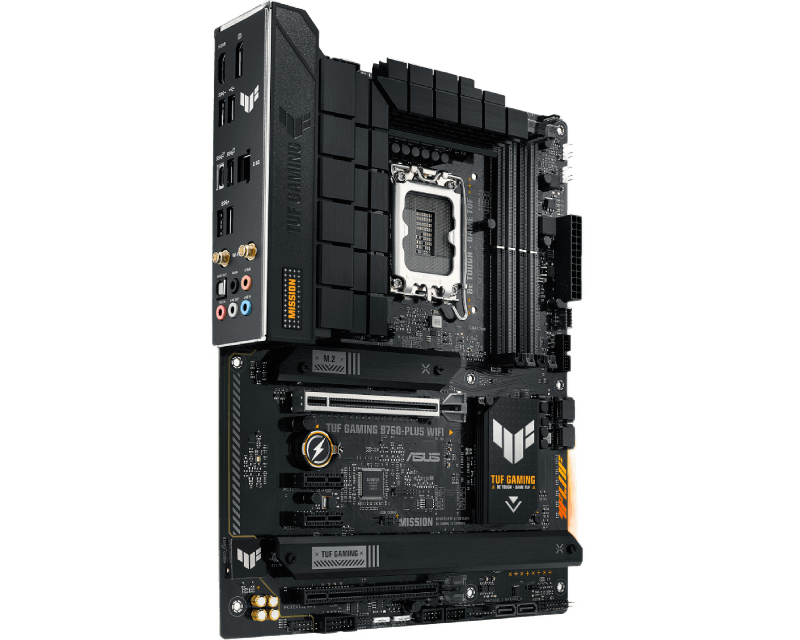

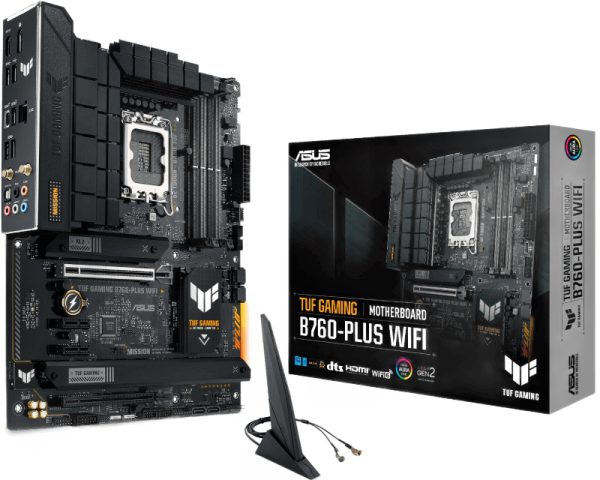

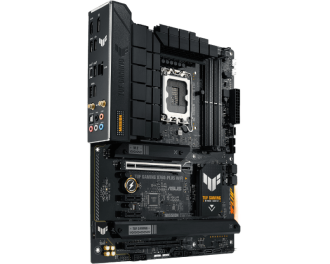

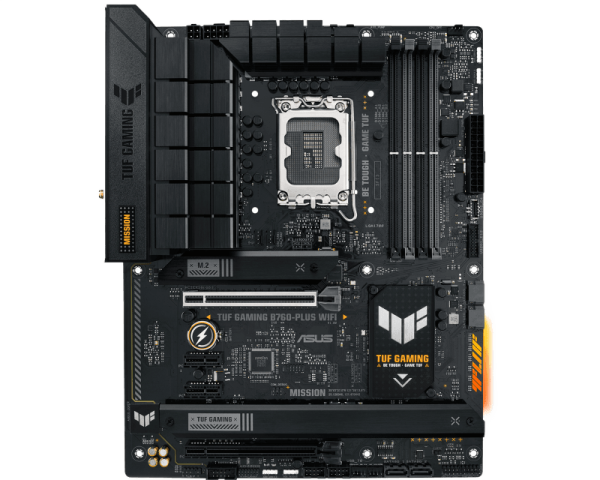

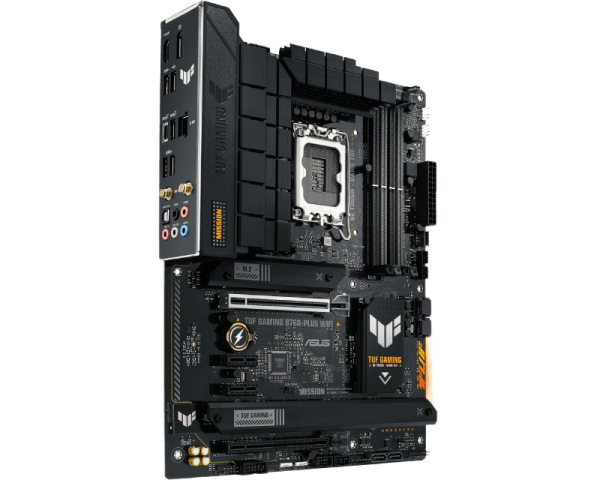

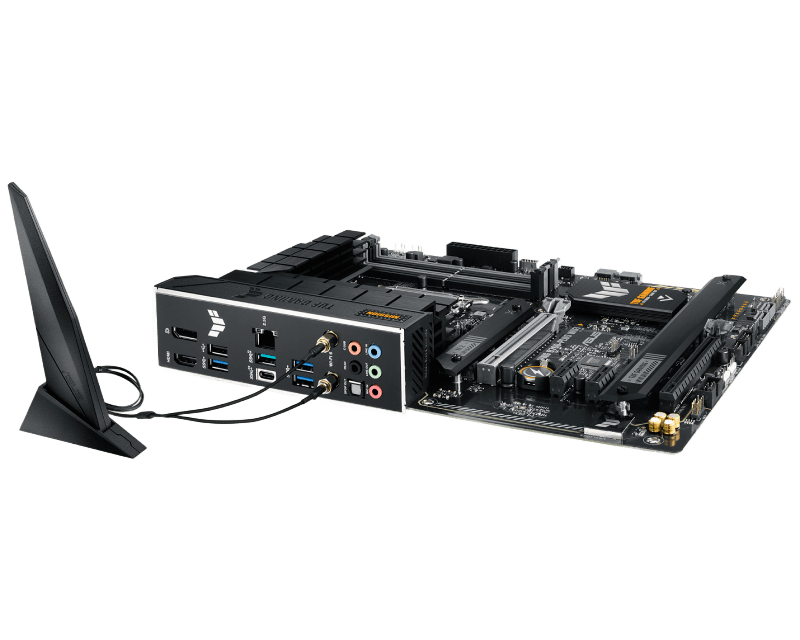

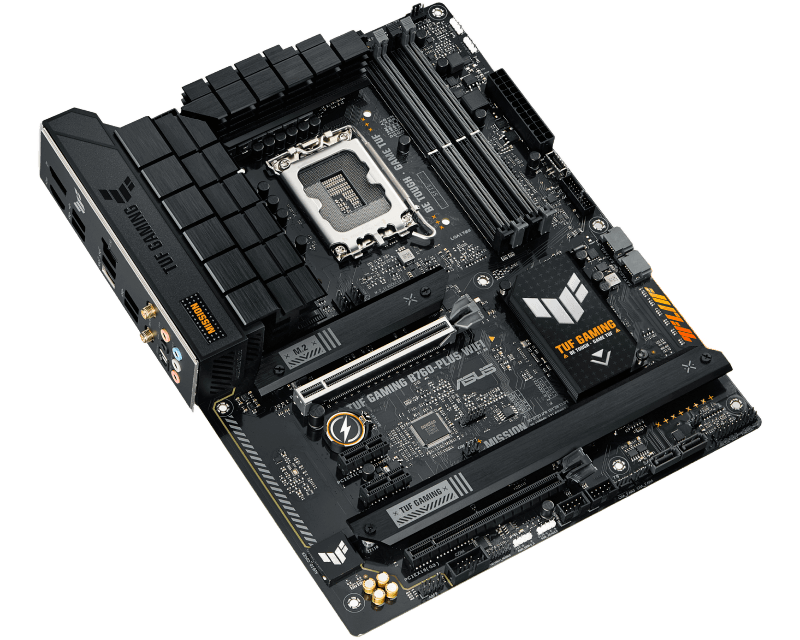

ASUS TUF GAMING B760-PLUS WIFI

ASUS TUF GAMING B760-PLUS WIFI

Варијанта:

− +

10 590 ден.

0 ден.

Не е достапен

Бренд:

ASUS
Шифра:

INS-38-5337-E
Достапен за порачка:

Не е достапен

Да
Chipset:

Intel B760
RAM type:

DDR5
USB Type-C ports:

3 , 1
Dimensions:

305mm x 244mm
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Supported technologies:

Aura Sync, Fan Xpert 4, Digi + Vrm, Overvoltage Protection, PC Cleaner, Procool, ESD Guards, Tuf Languard, Aura Creator, Ai Noise Cancelation, Uefi BIOS
Condition:

Unused
Package:

Screws, 2 x hours 6GB / s cable
Model:

Realtek
Processor bearing (Socket):

Intel 1700
USB ports:

3x USB 5GBPS (3.2 GEN 1), 1x USB 10GBPS (3.2 GEN 2), 1x USB 2.0
Other traits:

Extreme Memory Profile Support (XMP), Optimem II
Audio:

1x Front Panel Header
Bluetooth version:

5.2
Other connections:

4 x SATA 6GB / s, 1 x 4-pin AIO Pump Header, 1 x 20-3 Pin System Panel Header with Chassis Intrude Function, 1 x Clear CMOS Header, 3 x Addressable Gen 2 Headers, 1 x com Port Header, 1 x Aura RGB Header, 3 x M.2 Slot (Key M), 1 X Thunderbolt ™ (USB4®) Header, 4 x 4-PIN Chassis Fan Headers
PCI Express X1 Slot:

2x PCI Express 3.0
USB:

2 x Support for 4 USB 2.0 ports, 1 x Support for 2 USB 5GBPS ports
USB-C ports:

1x USB 20GBPS (3.2 GEN 2x2)
Maximum total memory:

192GB
PCI Express x16 slot:

1x PCI Express 3.0, 1x PCI Express 5.0
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 5, Raid 10
Voltage connections:

1 x 24 PIN Main Power Connector, 1 x 8-pin ATX 12V Power Connector, 1 x 4-PIN ATX 12V Power Connector
USB-C:

1 x Support for 1 USB 5Gbps port

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

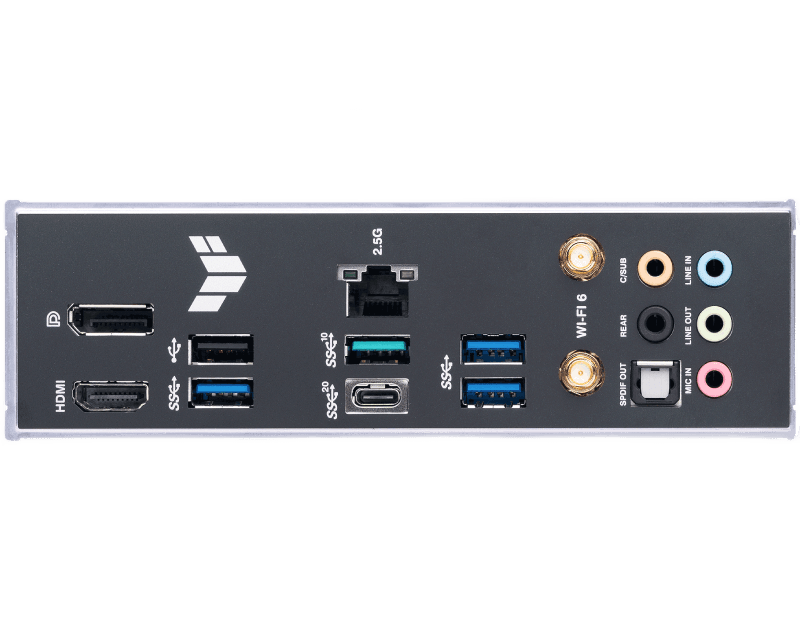

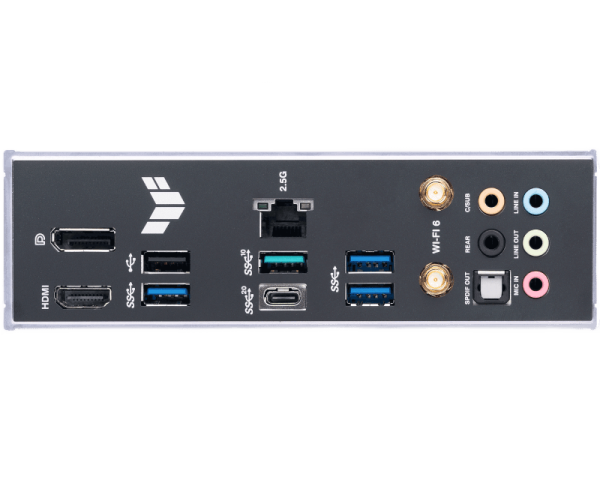

Basic characteristics - Processoring tray (Socket): Intel 1700 Chipset: Intel B760 Memory: DDR5 Memory slots: 4 Supported memory: 4.800MHz, 5.400MHz, 5.600MHz, 5.800MHz (o.c.), 6,200MHz (O.c.), 6.400mhz (o.c.), 6.800mhz (o.c.), 7.000mhz (o.c.), 7,200mhz (o.c.) Maximum total memory: 192GB Other features: Optimem II, Extreme Memory Profile (XMP) Slots - PCI Express X16 Slot: 1x PCI Express 3.0,1X PCI Express X1 Slot: 2x PCI Express 3.0 Storage Interface - SATA (Total): 4 hours M.2, RAID 1, RAID 10, RAID 5 Network - Wired network (LAN): 2.5GBASE-T (Gigabit) Model: Realtek Wi-Fi: Yes Wi-Fi Standard: Wi-Fi 6 (802.11ax) Bluetooth: Model: realtek Note: Audio Cover, Audio Shielding, Premium Panel Jack-Retasking, Jack-Detection, Multi-Streaming, Premium Audio Capacitors Attachments on Last Panel - Number of DisplayPort ports: 1 Number of HDMI connectors: 1 Total USB connectors: 1 USB ports: 1x USB 10GBPS (3.2 Gen 1) USB-C Connections: 1x USB 20GBPS (3.2 GEN 2x2) RJ-45 (LAN): 1 Audio: 5x 3.5mm Other connections: 1 x Optical S / PDIF, 1x Wi-Fi module Internal connections - Voltage connections: 1 x 24 PIN Main Power Connector, 1 x 12V Power Connector USB: 1 x Support for 2 USB 5GBPS ports, 2 x Support for 4 USB 2.0 port USB-C: 1 x Support for 1 USB 5Gbps PANEL Header Other connections: 1 x 20-3 Pin System Panel Header with Chassis Intrude Function, 1 x 4-pin CPU Fan Header, 1 x 4-pin CPU OPT Fan Header, 1 X Aura RGB Header, 1 x CLEAR CMOS Header, 1 x Thunderbolt ™ (USB4®) Headers, 3 x M.2 Slot (Key M), 4 x 4-pin Chassis Fan Headers, 4 x SATA 6GB / S Note: To use certain internal connectors are required to exploit certain internal connectors needed Additional brackets or accessories on housing Other characteristics - supported technologies: Aura Creator, Aura Sync, Fan Xpert 4, Overvoltage Protection, PC Cleaner, Procool, Tuf Languard, UEFI BIOS Physical characteristics - Format: ATX Dimensions: 305mm x 244mm Packaging: 2 x SATA 6GB / s Cable, screws Condition: Unused reclivation period - Complaint period: 36 months
