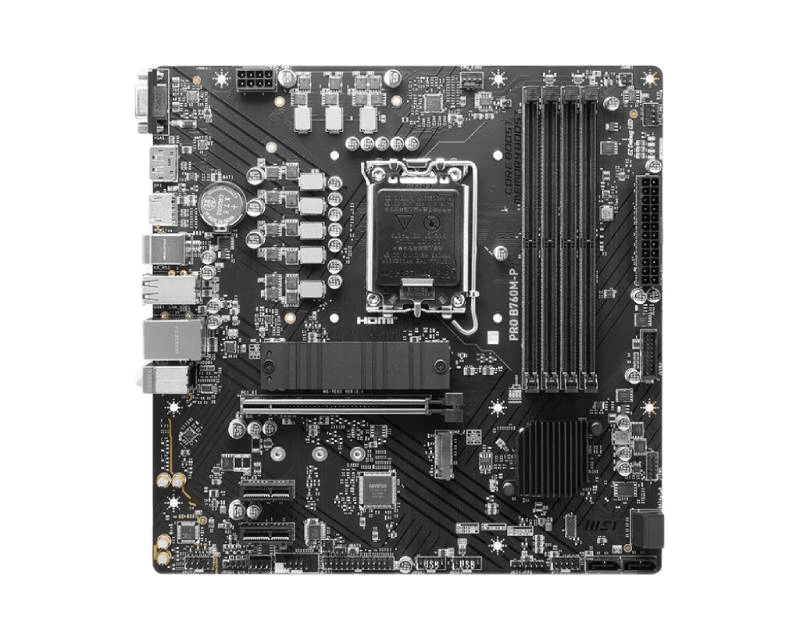

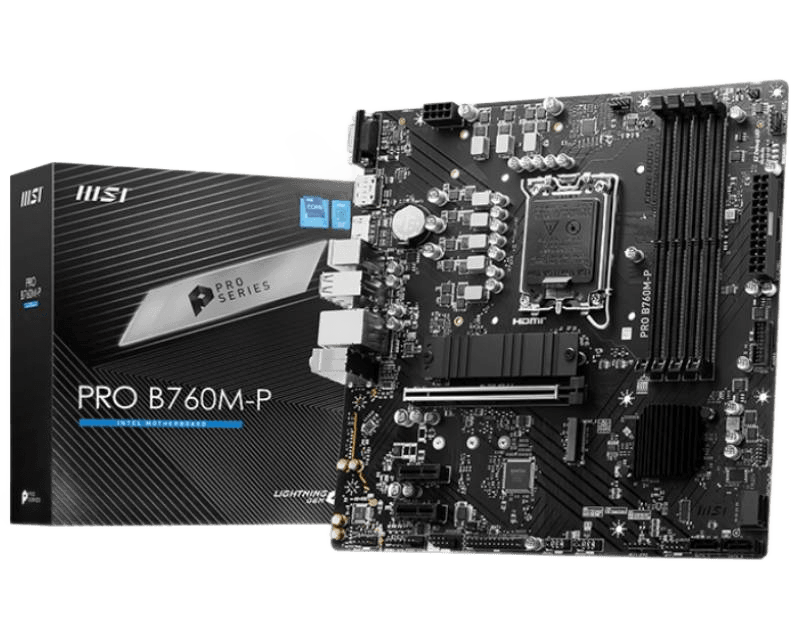

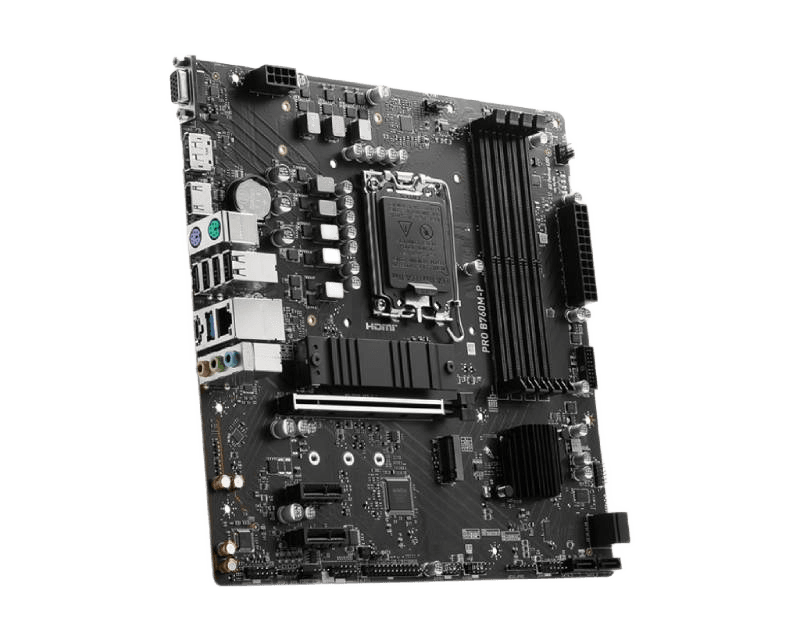

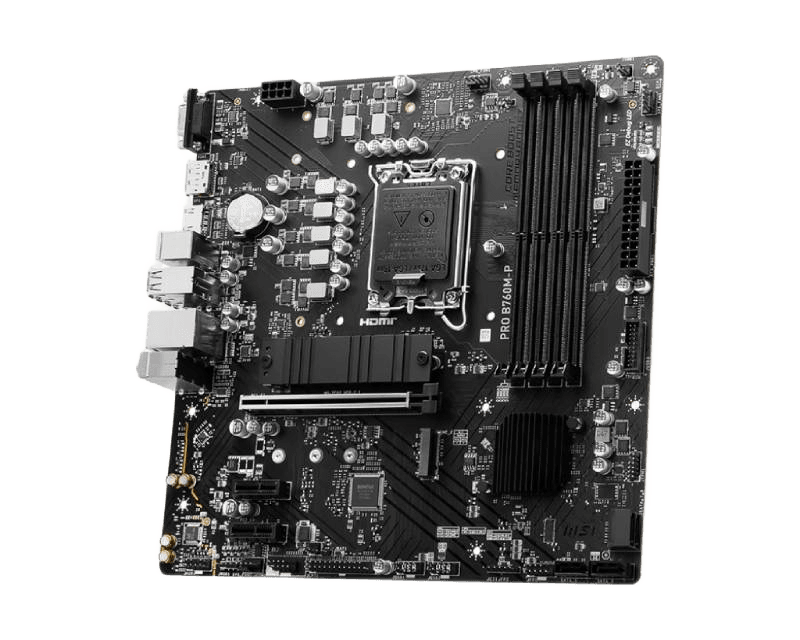

PRO B760M-P

Варијанта:

6 490 ден.

0 ден.

Не е достапен

Бренд:

MSI
Шифра:

INS-38-428-E
Достапен за порачка:

Не е достапен

Да
Chipset:

Intel B760
RAM type:

DDR5
RAM DIMMs:

2
USB Type-C ports:

3 , 1
Dimensions:

243.84mm x 243.84mm
Format:

Microatx
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Supported technologies:

Core Boost, Audio Boost, Memory Boost, M.2 Shield Frozr
DisplayPort ports:

1x DisplayPort 1.4
HDMI connectors:

1x HDMI 1.4
Condition:

Unused
Package:

SATA Cable
Graphics:

Using the processor graphics
Model:

Realtek
Processor bearing (Socket):

Intel 1700

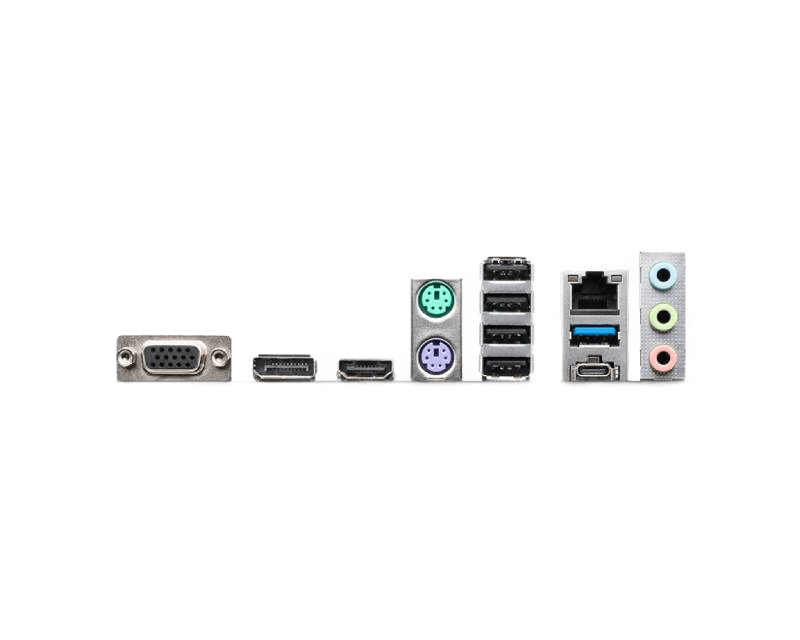

USB ports:

1x USB 5GBPS (3.2 GEN 1), 4x USB 2.0
Other traits:

Support for Extreme Memory Profile (XMP), Dual Channel (Dual-Channel) Memory mode, Non-ECC Support Udimm Memory
Audio:

1x Front Panel Audio
Wired network standards:

1000Base-T (Gigabit)
Other connections:

4 x EZ Debug LED, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x RGB LED Connector (JRGB), 1x TPM Pin Header (Support TPM 2.0), 1 x CPU Fan Header, 2x System Fan
PCI Express X1 Slot:

1x PCI Express 4.0 , 2x PCI Express 4.0
USB:

2 x Support for 1 USB 5Gbps port
USB-C ports:

1x USB 10GBPS (3.2 GEN 2)
Supported memory:

6,000MHz (O.C.), 5.800MHz (O.C.), 6,200MHz (O.C.), 4.800MHz, 6.400MHz (O.C.), 5.200MHz, 5.400MHz, 6.600MHz (O.C.), 6.800MHz (O.C.)
Maximum total memory:

192GB
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 5, Raid 10
Channel number:

8 (7.1)
PS / 2:

2 (keyboard + mouse)
Voltage connections:

1x Power Connector (ATX_PWR), 1x Power Connector (CPU_PWR)
Other slots:

2x M.2 Slot, 4x SATA III

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

Basic characteristics - Socket: Intel 1700 Chipset: Intel B760 Graphics: Using the Memory Processor - Memory type: 4 Supported memory: 4.800MHz, 5.400MHz, 5.600MHz, 5.800MHz (o.c.), 6,000MHz (O.c.), 6,200mhz (O.C.), 6.600MHz (O.C.), 6.800MHz (O.C.), 6.800MHz (O.C.), 6.800MHz (O.C.) Maximum Total Memory: Two-Channel (Dual-Channel) Memory mode, Extreme Memory Profile (XMP), Non-ECC Support Udimm Memory Slots - PCI Express X16 Slot: 1x Express X1 Slot: 2x PCI Express 4.0 M.2 slot, 4x SATA III Storage interface - SATA III 6GBPS Number M.2 slots: 2 RAID: RAID 0, RAID 1, RAID 10, RAID 5 Network - Wired Network (LAN): 1000Base-T (Gigabit) Model: Realtek Connections: 1 DISPLAYPORT 1.4 HDMI ports: 1 HDMI Accessories: 1x HDMI 1.4 VGA D-Sub: 1 PS / 2: 2 (Keyboard + Mouse) Total USB ports: 6 USB ports: 1x USB 5GBPS (3.2 GEN 1), 4x USB 10GBPS (3.2 Gen 2) RJ-45 (LAN): 1 Audio: 3x 3.5mm Inside connectors - Voltage connections: 1x Power Connector (ATX_PWR), 1x Power Connector (CPU_PWR) USB 5GBPS port audio: 1x Front Panel Audio Serial port: 1 Other connections: 1 x CPU Fan Header, 1x Chassis Intrusion (JCI), 1x RGB LED CONNECTOR (JRGB), 1x TPM PIN Header (Support TPM 2.0), 2x System Fan, 4 x EZ Debug LED Note Additional brackets or accessories on housing Other characteristics - Supported technologies: Audio Boost, Core Boost, M.2 Shield Frozr, Memory Boost Physical characteristics - Format: MicroATX Dimensions: 243.84mm x 243.84mm Packaging: SATA Cable Cable: Unused reclivation period - Complaint period: 36 months
